10kwh 48v Wall Mount Lithium Batteries For Solar Power Wall Lithium Battery
  • 10kwh 48v Wall Mount Lithium Batteries For Solar Power Wall Lithium Battery
  • 10kwh 48v Wall Mount Lithium Batteries For Solar Power Wall Lithium Battery
  • 10kwh 48v Wall Mount Lithium Batteries For Solar Power Wall Lithium Battery

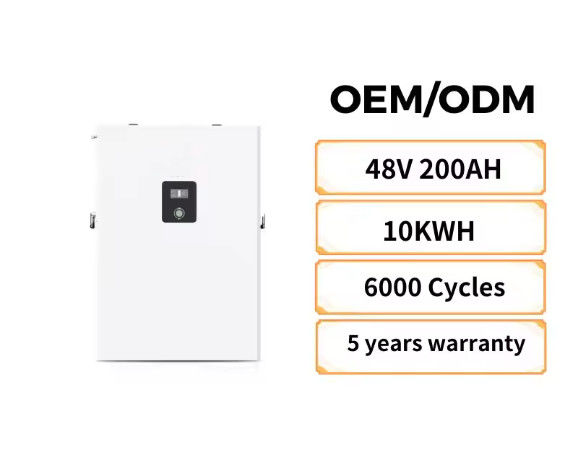

10kwh 48v Wall Mount Lithium Batteries For Solar Power Wall Lithium Battery

10kwh 48v Wall Mount Lithium Batteries For Solar Power Wall Lithium Battery

Place of Origin china
Product Details
Place Of Origin:
Guangdong, China
Battery Type:
LiFePO4
Voltage:
48V
Cycle Life:
6000 Times
Certification:
CAN, RS485,RS232
The Discharge Rate:
95%
Highlight:

48v Wall Mount Lithium Batteries

,

10kwh Wall Mount Lithium Batteries

,

Solar Power Wall Mount Lithium Batteries

Payment & Shipping Terms
Minimum Order Quantity
negotiated
Price
negotiated
Delivery Time
negotiated
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

10kwh 48v Wall Mount Lithium Batteries For Solar Power Wall Lithium Battery



Product Description

Features

• Long warranty period:3-5 years
•Lithium Battery Iron Phosphate Battery
• Support connected in parallel mode for expansion
• Higher energy density, smaller volume for household.
• Photovoltaic system: This battery pack is designed for household photovoltaic systems
• Battery management system (BMS): The battery packs built-in BMS monitors its operation and prevents the battery from operating outside design limitations.
• Expandability: This battery pack can be easily expanded by adding expansion battery packs in parallel connection.
Model
LPBF48100-M
LPBF48200-H
LPBF48100-H
Usable Capacity
5KWH
10KWh
5KWH
Nominal Voltage
51.2V
51.2V
51.2V
Voltage Range
48-57.6V
48-57.6V
48-57.6V
MAX.Charge&Discharge Current
100A@30S
120A@30S
100A@30S
Recommend Charge & Discharge Current
≤ 50A
≤80A
≤50A
MAX.Output Power
5000W
6000W
5000W
Recommend Output Power
2500W
4000W
2500W
DOD
≥95%
Modules Connection
1-6in parallel
Communication
CAN&RS485
Ingress Protection
IP21
Cycle Life
≥6000@25℃,80%DOD
Working Temperature Range
Discharge:-20℃to+65℃,Charge:+0℃ to+55"℃
Net Weight(KG)
40KG
75KG
63KG
Gross Weight(KG)
45KG
88KG
76KG
Product Dimension(MM)
630x540x260MM
685x475x213MM
575x430x258MM
Package Dimension(MM)
642x552x278MM
780x570x375MM
670x525x415MM

10kwh 48v Wall Mount Lithium Batteries For Solar Power Wall Lithium Battery 0

Company Profile
Guangdong PMD New Energy Co., Ltd. is a Chinese lithium battery high-tech enterprise integrating R&D, production and sales.The company is located in Dongguan City. We focus on the design and development of high-voltage, large-capacity and long-life LiFe PO 4 batteries, LTO batteries and systems, and have advanced production and testing facilities to provide competitive prices and high-quality product services.

FAQ
Q1:Can I have samples to test? And what is lead time for sample order?
A1:Yes,we can supply samples,the leadtime for samples is 7-10 days.and buyer pay for sample cost and shipping cost.

Q2: Do you provide after-sales serive?
A2: Yes,the warranty is 1-3 years, if any quality problems on our side in this period, we can send new one as replacement.

Q3 What is your company's advantage?
A3: We only supply high level quality of lithium battery and we gurantee on-time shipment,we also provide excellent after sales
service

Q4: Do you accept OEM/ODM?
A4: Yes,it is avaliable.

Q5: What information do you need to make a customized battery pack?
A5: We need the details below:
1. Size of the battery pack you need in mm.
2. Capacity of the Battery pack.
3. Voltage of the battery pack.
4. Max discharge current.
5. Cable and connector types you need.
6. Casing and Terminals if required.
7. Any protection circuits you may need.

Q6:Are you battery real capacity?
A6:All of our battery cells with Grade A,100% new and real capacity.

Q7:Are you a factory or a trading company
A7:We are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.

Q8: What kind of certificates do you have?
A8: We can provide CE,ROHS,IEC62133,MSDS,UN38.3 if your need.

Q9: What is your lead time for the mass production?
A9: General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.
