Home 48V 200ah Powerwall Solar Battery 10kwh For Energy Storage
  • Home 48V 200ah Powerwall Solar Battery 10kwh For Energy Storage
  • Home 48V 200ah Powerwall Solar Battery 10kwh For Energy Storage
Home 48V 200ah Powerwall Solar Battery 10kwh For Energy Storage

Home 48V 200ah Powerwall Solar Battery 10kwh For Energy Storage

Place of Origin china
Product Details
Model:
LW51200 Powerwall Battery
Energy:
5kwh,10KWh
Cell Type:
Prismatic- LiFePO4
High Light:
48v 200ah Powerwall Solar Battery 10kwh
Payment & Shipping Terms
Minimum Order Quantity
negotiation
Price
negotiation
Delivery Time
negotiation
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description
Home 48v 200ah Powerwall Solar Battery 10kwh For Storage Battery

PRODUCT DESCRIPTION
Home Battery 48v 200ah Powerwall Solar Battery 10kwh Power For Storage Battery

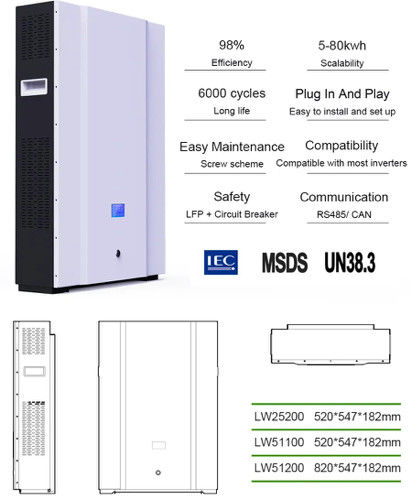

Home 48V 200ah Powerwall Solar Battery 10kwh For Energy Storage 0
Home Energy Storage System
EV cell safety standard, built-in with intelligent BMS and circuit breaker svstem, at the same time, compatible with the mostmainstream inverters, also can expand to 8 units in parallel .Home Energy Storage System
Home 48V 200ah Powerwall Solar Battery 10kwh For Energy Storage 1
╣PRODUCT DESCRIPTION
Home 48V 200ah Powerwall Solar Battery 10kwh For Energy Storage 2
╣BATTERY PARAMETERS
Model
LW25200
LW51100AH

LW51200
Basic parameter
Battery Type
LiFePo4
LiFePo4
LiFePo4
Rated voltage
25.6V
51.2V
51.2V
Rated capacity
200AH
100AH
200AH
Energy(25°C, 0.5C)
5.12kwh
5.12kwh
10.24kwh
Size
520*547*182mm
520*547*182mm
820*547*182mm
weight
55kg
55kg
105kg
Electric parameter
Voltage range
22.4~28.8VDC
44.8~57.6VDC
44.8~57.6VDC
Float charge voltage
28V
56V
56V
Max continue discharge current
100A
100A
100A
Pluse discharge current
150A(1 Sec)
150A(1 Sec)
150A(1 Sec)
Recommend discharge current
≤100A
≤50A
≤100A
Max continue charge current
50A
50A
50A
Recommend charge current
≤60A
≤30A
≤60A
cycle life(25°C, 0.5C,90%DOD)
>6000 Cycles
>6000 Cycles
>6000 Cycles
Design life
>15years
>15years
>15years
Terminal
M8
IP level
IP20
Max parallel number
8pcs
Safety standard
IEC62619, UN38.3, MSDS
communication function
RS485/CAN(support inverter brand: Deye, Growatt, Luxpower,Solax, Victron, Goodwe, Sofar,SMA,Pylontec)
BMS protection
Over charge, over discharge, over temperature, over current,short circuit
Home 48V 200ah Powerwall Solar Battery 10kwh For Energy Storage 3
