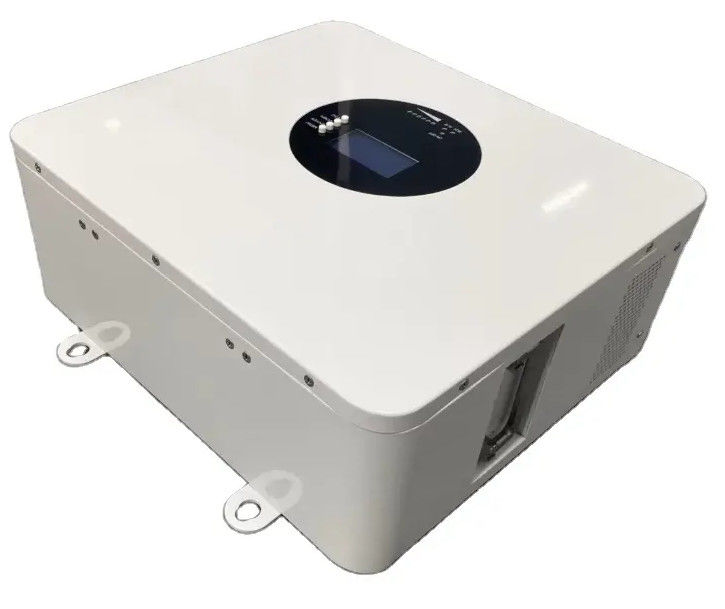

Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh
  • Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh
Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh

Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh

Place of Origin china
Product Details
Battery Type:
LiFePO4
Output Power Range:
5~10 KWh
Protection Class:
IP65
Cycle Life:
6000 Cycles
Nominal Voltage:
24V
Nominal Capacity:
100AH/200AH
Highlight:

Solar Powerwall Lifepo4 Battery

,

Powerwall Lifepo4 Battery 3kwh

,

Smart Wall Mounted Lithium Battery

Payment & Shipping Terms
Minimum Order Quantity
negotiated
Price
negotiated
Delivery Time
negotiated
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

Lifepo4 Lithium Battery Wall Mounted 24v 100ah 3kwh Storage Solar Energy System Smart BMS 24v Lifepo4 Powerwall Battery

Product details


Model No
24100
4850
48100
48120
48200
Batteries materials
Lithium iron phosphate
Nominal voltage
25.6V
48V
48V
48V
48V
Nominal capacity
100Ah
50Ah
100Ah
120Ah
200Ah
Size(mm)
410*370*160
375*340*147
471*375*147
471*375*147
590*375*245
Weight
26kg
26kg
42kg
45kg
82kg
Color
Optional
Parallel support
Parallel terminals are supported
Output port mode
terminal
Charging way
CC/CP/VP
Charging current
0.2C(standard)
Maximum charging current
Max0.5C @25℃
Discharge way
CC/CP/VP
Discharge current
0.5C
Charge cut-off voltage
29.4V/CELL
29.4V/CELL
54.8V/CELL
54.8V/CELL
54.8V/CELL
Maximum discharge current
Max1C @25℃
Discharge cut-off voltage
22.4V
22.4V
36.4V
36.4V
36.4V
According to
LCD
Communication interface
RS485/RS232/CAN
Charging operating temperature
charging:0~+50℃
Discharge operating temperature
discharge:-20~+55℃
The quality assurance period
5 years
Applicable scope
hospital, bank data center, base frame type home,enterprise energy storagebackup power supply, wind complementary system,office,
military, base station and other uninterrupted energy storage power supply.
Product Description
Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh 0
Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh 1
Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh 2
Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh 3
Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh 4
Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh 5
Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh 6
Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh 7
Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh 8

Product Usage
Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh 9


  •

    •



Household solar power supply system

By storing energy during the day and meeting the needs of household appliances at night, we can save your electricity costs and save energy and environmental protection;
As an emergency backup power source for households, providing power support in case of power outages or other emergency situations.


  •

Supporting parallel connection of multiple batteries
When your home has a high demand for electricity, we support up to 16 batteries in parallel to provide you with sufficient power
support and solve your electricity problems.

When several batteries are stacked together, we will provide you with bracket products to ensure the safe and beautiful use of the
product.
Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh 10
Our products are widely praised!Come and consult us～
This is only the real feedback from some customers. If you have specific product requirements,
please contact our customer service personnel in time, and we will answer all your questions as soon as possible.
Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh 11
Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh 12
Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh 13
Packing&Shipping
Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh 14
Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh 15
Solar Powerwall Lifepo4 Battery Smart Wall Mounted Lithium Battery 24V 100ah 3kwh 16
The robotic arm machine is operated automatically, and the product is packaged strictly according to the safety packaging requirements. Finally, a truck is arranged to transport the goods to the port and board the ship in a timely manner.
