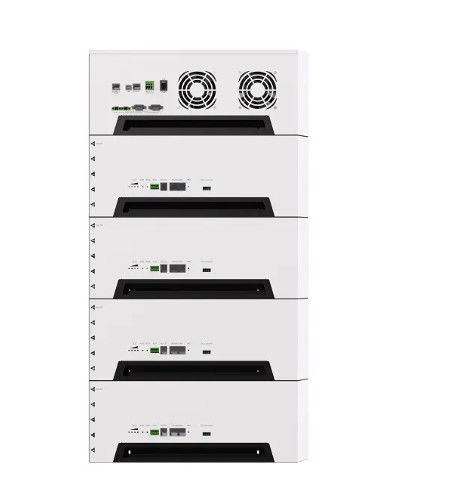

15KW Off Grid Solar Panel System for Home House
|
|
H4805S-SO
|
H4810S-SO
|
H4815S-SO
|
H4820S-SO
|
|
BATTERY
|
|
Battery Module
|
1
|
2
|
3
|
4
|
|
Battery Energy
|
5.12kWh
|
10.24kWh
|
15.36kWh
|
20.48kWh
|
|
Battery Capacity
|
100AH
|
200AH
|
300AH
|
400AH
|
|
Weight
|
80kg
|
133kg
|
186kg
|
239kg
|
|
Dimension L×W×H
|
710×450×384
|
710×450×576
|
710×450×768
|
710×450×960
|
|
Battery Type
|
LiFePO4
|
|
Battery Rated Voltage
|
51.2V
|
|
Battery Working Voltage Range
|
44.8 ～ 57.6V
|
|
Maximum Charging Current
|
100A
|
|
Maximum Discharging Current
|
100A
|
|
DOD
|
80%
|
|
Parallel Quantity
|
4
|
|
Designed Life-span
|
6000
|
|
PV CHARGE
|
|
Solar Charge Type
|
MPPT
|
|
Maximum Output Power
|
5KW
|
|
PV Charging Range
|
0～80A
|
|
PV Operating Voltage Range
|
120～500V
|
|
MPPT Voltage Range
|
120～450V
|
|
AC CHARGE
|
|
Maximum Charge Power
|
3150W
|
|
Rated Input Voltage
|
220/230Vac
|
|
Input Voltage Range
|
90～280Vac
|
|
AC OUTPUT
|
|
Rated Output Power
|
5KW
|
|
Maximum Output Current
|
30A
|
|
Frequency
|
50Hz
|
|
BATTERY INVERTER OUTPUT
|
|
Rated Output Power
|
5KW
|
|
Maximum Peak Power
|
10KVA
|
|
Rated Output Voltage (Vac)
|
230Vac
|
|
Auto Switch Period
|
＜15ms
|
|
THD
|
＜3%
|
|
GENERAL DATA
|
|
Communication
|
RS485/CAN/WIFI
|
|
Storage time / temperature
|
6 months @25℃;3 months @35℃;1 months @45℃;
|
|
Charging temperature range
|
0～45℃
|
|
Discharging temperature range
|
-10～45℃
|
|
Noise
|
60dB(A)
|
|
Certification
|
UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3
|
Wide Application
1,For no city power areas, the battery pack can be charged by solar panels and used for night lighting;
2,For the areas that city power is expensive, the battery pack can be charged during the electricity valley value period,
and used at the peak power period;
3,For the areas which power off from time to time, the battery pack can be used as UPS, to avoid information loss caused
by sudden power outage.
4,The battery pack is applicable to commercial lighting, industrial lighting, home lighting, outdoor lighting,camping tourism,
farming, planting, the night market stalls, etc.
