Home Off Grid Energy Storage Lithium Battery System 10kwh 15kwh 20kwh
  • Home Off Grid Energy Storage Lithium Battery System 10kwh 15kwh 20kwh

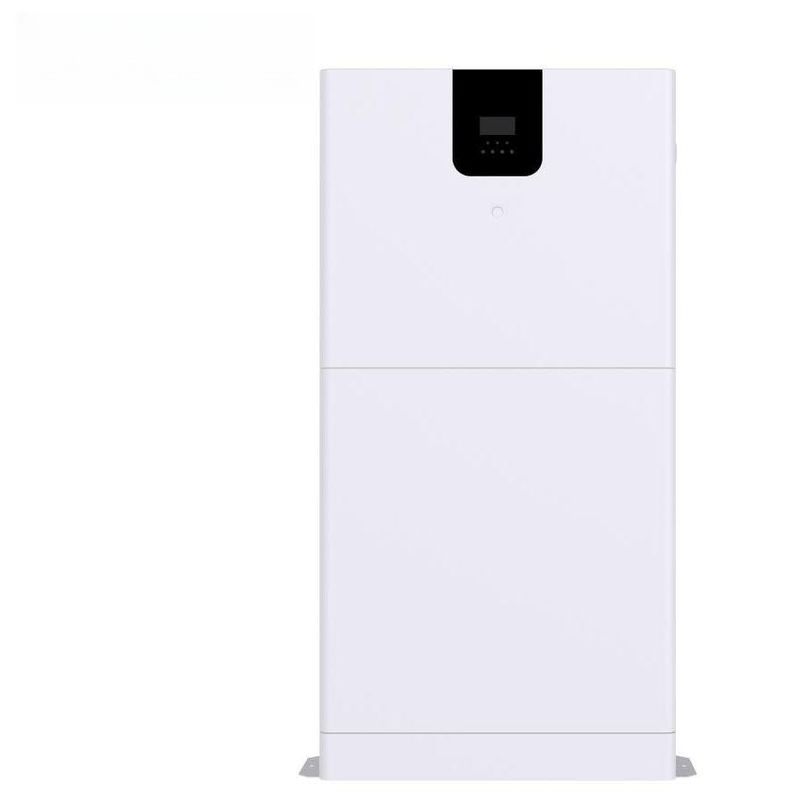

Home Off Grid Energy Storage Lithium Battery System 10kwh 15kwh 20kwh

Home Off Grid Energy Storage Lithium Battery System 10kwh 15kwh 20kwh

Place of Origin china
Product Details
Output Power Range:
10~20 KWh
Weight:
160kg
Capacity:
5kwh-20kwh
Battery Type:
Lithium Ion
Inverter Type:
Off-grid Power Inverter
Dimension (L*W*H):
180*20*50cm
Highlight:

Off Grid Energy Storage 10kwh

,

Off Grid Energy Storage 15kwh

,

Off Grid Lithium Battery System 20kwh

Payment & Shipping Terms
Minimum Order Quantity
negotiated
Price
negotiated
Delivery Time
negotiated
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description


Home Off Grid Energy Storage Lithium Battery System 10kwh 15kwh 20kwh​


Technical parameter
Y00500100LG
Y00500150LG
Y00500200LG
Mains power input
Rated input voltage(V)
220/230
Input voltage range (V)
90-280
Frequency range(Hz)
50/60
Maximum mains charging current(A)
60
Battery (built-in)
Battery type
Lithium battery
Rated voltage(V)
51.2
Input voltage range (V)
44.8 -57.6
Stored electric energy (KWh)
10.24/15.36/20.48
PV input
Maximum input power(W)
5000
Input voltage range (V)
120-500
Recommended PV string voltage(V)
120-450
Number of MPPT routes
1
Maximum photovoltaic charging current(A)
80
AC output
Rated output power (W)
5000
Peak output power (W)
10000
Rated output voltage (V)
220/230
Output frequency range (Hz)
50/60
No load loss
Non energy saving mode: ≤ 50W; Energy saving mode: ≤ 25W (to be set)
Output voltage distortion rate THD
±5%
Peak efficiency
＞90%
Overload protection
Short circuit protection, over-voltage and undervoltage protection, overload protection, reverse irrigation protection
Other parameters
Operating temperature range(℃)
-10-45℃
Humidity range
5%-85%
Protection grade
IP20
Operating altitude(m)
＜2000
Noise(dB)
＜60
Cooling mode
forced air cooling
Isolation mode
Natural air cooling
Display mode
LED/APP
Communication mode
RS485/CAN/WIFI
Reference dimension(W*D*H)mm
710×450×600/800/1000
Reference weight(kg)
133/186/239



Home Off Grid Energy Storage Lithium Battery System 10kwh 15kwh 20kwh 0






FAQ

Q1: How to choose the right battery?
A1: Tell us your demand and budget, then our sales will recommend a suitable battery for you.

Q2: What's the advantages for lithium battery compared with Gel battery?
A2: Energy ratio is relatively high, long service life.

Light weight, the weight is about 1/5-6 of the lead-acid product under the same volume.
Green and environmental protection, no matter it is produced, used or scrapped, it does not contain or produce any toxic and harmful heavy metal elements and substances such as lead, cadmium, etc.

Q3: How about the delivery time?
A3: Delivery time 7 days for sample; 15 days for bulk order.

Q4: What is the warranty for solar battery?
A4: Generally warranty for solar panel is 5 years, also we offer lifelong maintenance for free.

Q5: How can I get better service from you?
A5: We have professional engineer team can give you best support based on your requirement. If you have any problems during using, we offer 24 hours online service and will solve your problem within 1 hour.
