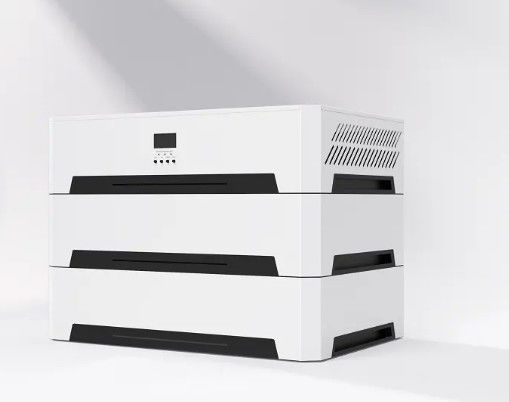

Solar Power System Household 10KW Off Grid Solar Energy Storage System
Specification
|
|
RS-H4805S-SO
|
RS-H4810S-SO
|
RS-H4815S-SO
|
RS-H4820S-SO
|
|
BATTERY
|
|
Battery Module
|
1
|
2
|
3
|
4
|
|
Battery Energy
|
5.12kWh
|
10.24kWh
|
15.36kWh
|
20.48kWh
|
|
Battery Capacity
|
100AH
|
200AH
|
300AH
|
400AH
|
|
Weight
|
80kg
|
133kg
|
186kg
|
239kg
|
|
Dimension L×W×H
|
710×450×384
|
710×450×576
|
710×450×768
|
710×450×960
|
|
Battery Type
|
LiFePO4
|
|
Battery Rated Voltage
|
51.2V
|
|
Battery Working Voltage Range
|
44.8 ～ 57.6V
|
|
Maximum Charging Current
|
100A
|
|
Maximum Discharging Current
|
100A
|
|
DOD
|
80%
|
|
Parallel Quantity
|
4
|
|
Designed Life-span
|
6000
|
|
INVERTER TECHNICAL SPECIFICATION
|
|
Inverter model
|
RS-H4850U-CO
|
|
PV CHARGE
|
|
Solar Charge Type
|
MPPT
|
|
Maximum Output Power
|
5KW
|
|
PV Charging Range
|
0～80A
|
|
PV Operating Voltage Range
|
120～500V
|
|
MPPT Voltage Range
|
120～450V
|
|
AC CHARGE
|
|
Maximum Charge Power
|
3150W
|
|
|
|
|
AC Charging Current Range
|
0～60A
|
|
Rated Input Voltage
|
220/230Vac
|
|
Input Voltage Range
|
90～280Vac
|
|
AC OUTPUT
|
|
Rated Output Power
|
5KW
|
|
Maximum Output Current
|
30A
|
|
Frequency
|
50Hz
|
|
Overload Current
|
35A
|
|
BATTERY INVERTER OUTPUT
|
|
Rated Output Power
|
5KW
|
|
Maximum Peak Power
|
10KVA
|
|
Power Factor
|
1
|
|
Rated Output Voltage (Vac)
|
230Vac
|
|
Frequency
|
50Hz
|
|
Auto Switch Period
|
＜15ms
|
|
THD
|
＜3%
|
|
GENERAL DATA
|
|
Communication
|
RS485/CAN/WIFI
|
|
Storage time / temperature
|
6 months @25℃;3 months @35℃;1 months @45℃;
|
|
Charging temperature range
|
0～45℃
|
|
Discharging temperature range
|
-10～45℃
|
|
Operation Humidity
|
5% ～ 85%
|
|
Nominal Operation Altitude
|
＜2000m
|
|
Cooling Mode
|
Force-Air Cooling
|
|
Noise
|
60dB(A)
|
|
Certification
|
UN38.3,MSDS,EN55032,EN55024,EN61000-3-2,EN61000-3-3
|
