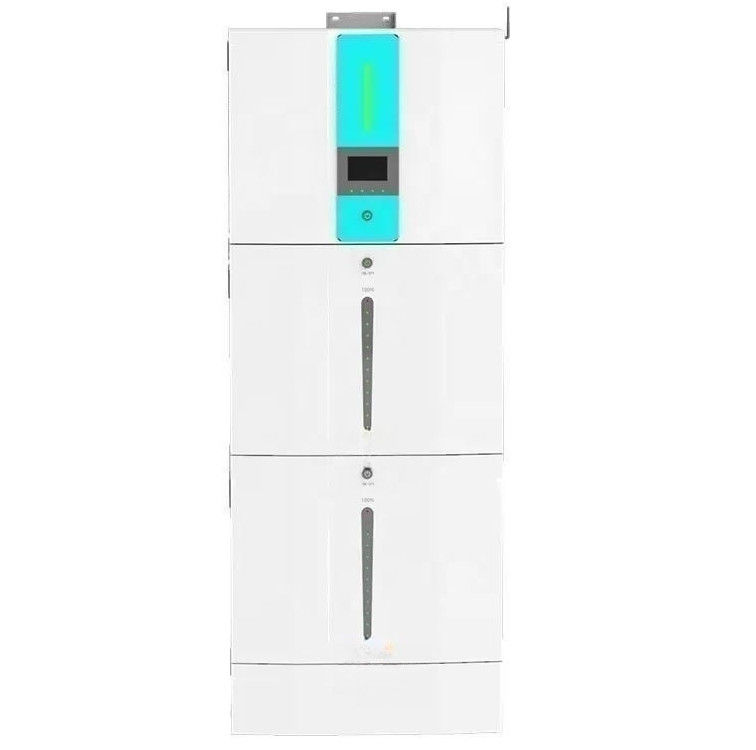

Solar Battery System Off Grid Energy Storage 5kWh 10kWh 20Kwh
  • Solar Battery System Off Grid Energy Storage 5kWh 10kWh 20Kwh
Solar Battery System Off Grid Energy Storage 5kWh 10kWh 20Kwh

Solar Battery System Off Grid Energy Storage 5kWh 10kWh 20Kwh

Place of Origin china
Product Details
Battery Type:
LiFePO4
Capacity:
5kWh/10kWh
Voltage:
48V /51.2V
Size:
214*621*1205mm
Weight:
140kg 235kg
Battery Cycle Life:
≥4000/80%DOD@25℃
Highlight:

Off Grid Energy Storage 20Kwh

,

Off Grid Energy Storage 5kWh

,

Solar Battery System Off Grid 10kWh

Payment & Shipping Terms
Minimum Order Quantity
negotiated
Price
negotiated
Delivery Time
negotiated
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

Solar Battery System Off Grid Energy Storage 5kWh 10kWh 20Kwh

Specification

Battery Model No.
TG 5510-EY1A1
TG 5520-EY1A1
Main Performance Parameters of Inverter
Maximum PV Input Power
6500 W
Rated Output Power
5500 W
Maximum Charging Power
5000 W
PV Input Parameter (DC)
Rated DC Voltage/Maximum DC Voltage
360 VDC / 500 VDC
Starting voltage/Initial Feed Voltage
116 VDC / 150 VDC
MPPT Voltage Range
120 VDC ~ 450 VDC
Number of MPPT Trackers / Maximum Input Current
2 / 2 x 13 A
Grid Connection/Output (AC)
Rated Output Voltage
208 / 220 / 230 / 240 VAC
Output Voltage Value
184 - 264.5 VAC*
Maximum Current Output
23.9 A*
Maximum Conversion Efficiency (DC/AC)
96%
European efficiency @ Vnominal
95%
AC Input Parameter
Automatic Starting Voltage
120 - 140 VAC / 180 VAC
Acceptable Voltage Range
170 - 280 VAC
Maximum AC Input Current
40 A
Battery Mode Output (AC)
Rated Output Voltage
208 / 220 / 230 / 240 VAC
Efficiency (DC - AC)
93%
Battery Specification
Nominal Voltage
51.2 VDC
Battery Capacity
200Ah
400Ah
Maximum Operating Current
120 A
200 A
Storage Energy Capacity
10.24KWH
20.48KWH
Charging Voltage (FC)
56 V
Discharge Cut-Off Voltage (FD)
45V
Protection
BMS, Disjunctor, Inverter
Internal Impedance(AC)
< 20 m Ohm
Battery Cycle Life
≥4000/80%DOD@25℃
System Parameter
Dimensions (D*W*H)
214*621*1205 mm
214*621*1755 mm
Weight
140kg
235kg
Operating Temperature/Humidity Range
0-55℃/0-80%RH
Communication
WIFI & RS232
Details Images
Solar Battery System Off Grid Energy Storage 5kWh 10kWh 20Kwh 0
Solar Battery System Off Grid Energy Storage 5kWh 10kWh 20Kwh 1
Solar Battery System Off Grid Energy Storage 5kWh 10kWh 20Kwh 2
Hybrid Inverter
Solar Battery System Off Grid Energy Storage 5kWh 10kWh 20Kwh 3
Battery

Products Features and Advantages

1. Power grid, PV, battery power supply priority can be set;
2. Built-in timer for switch operation in various modes;
3. Support RS232 WIFI multiple communication methods, check the system running status anytime and anywhere;
4. Scalable lithium battery design, 10-20KWH lithium battery can be selected to meet the daily power consumption needs of users;
5. Hybrid grid inverter, support grid-connected electricity sales;
6. Pure sine wave output, friendly to electrical equipment;
7. Stackable design, easy to install.
FAQ

1. What is the Quality Warranty Time?

15years
2. What is the MOQ?
1 Unit
3. Do you offer OEM&ODM Service?
Yes, like Power Capacity, Voltage, color and logo.
4. What certificates do you have?
IEC62619/CE-EMC/UN38.3/MSDS
5. How to install the system?
We will provide customers detailed "User Manual". We also provide 24 hours consulation sevice, For any questions, we will be online to reply you
