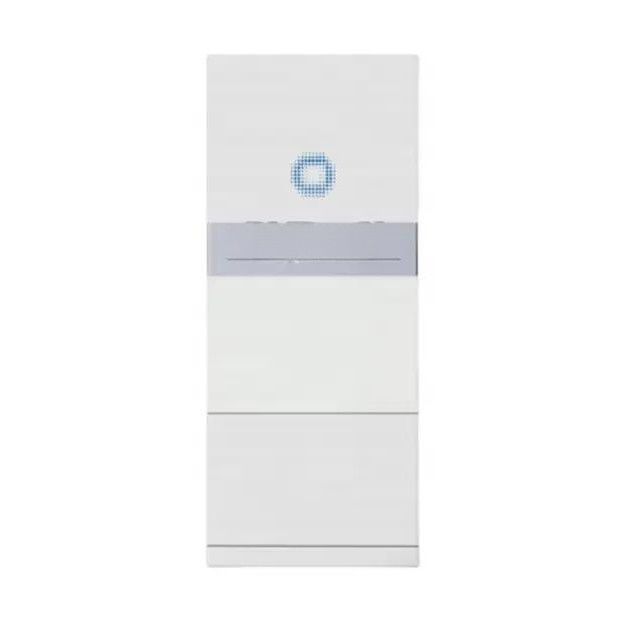

All In One Off Grid Energy Storage Solar Panel Hybrid System
  • All In One Off Grid Energy Storage Solar Panel Hybrid System
All In One Off Grid Energy Storage Solar Panel Hybrid System

All In One Off Grid Energy Storage Solar Panel Hybrid System

Place of Origin china
Product Details
Warranty:
15 Years
Weight:
48Kg
Rated Voltage:
102.4V
Rated Energy:
5.12kwh
Rated Capacity:
50Ah
Battery Size:
646mm*330mm*188mm
Highlight:

Off Grid Energy Storage 5Kva

,

Off Grid Energy Storage 5.12KWH

,

102.4V Solar Panel Hybrid System

Payment & Shipping Terms
Minimum Order Quantity
negotiated
Price
negotiated
Delivery Time
negotiated
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

All In One Off Grid Energy Storage Solar Panel Hybrid System

Product details

Rated Energy(kwh) 5.12
Usoblo Energy(kwh) 488
configuration ip32s
Rated Voltage(v) 102.4
Voltage Rongo(VDC) 91.2-115.2
Rated Capacity(Ah) 50
Max Charge/Discharge current (A) 5/8
Communication CAN/RS485
Scalability up to 8s
Humidity ≤95%
Operating Temperature (℃) charge:-10°C-50°C; Discharge -20°C-50°C
Dimension(w/d/h)(mm) 648*330*188
Weight(kg) ≤48
installation Mode Stock
ingress Protection IP65
Altitude (m) ＜2000
Safety UN38.3/IEC61000/IEC62619/CE
Cycle Life 6000 cyclo @25°C,95%DOD,60%EOL
Design Life 15years(25°C)
All In One Off Grid Energy Storage Solar Panel Hybrid System 0





All In One Off Grid Energy Storage Solar Panel Hybrid System 1All In One Off Grid Energy Storage Solar Panel Hybrid System 2
All In One Off Grid Energy Storage Solar Panel Hybrid System 3
Q1. What’s the life of Lead Acid Battery Replaced By Lithium Battery ?
A: 100% DOD Cycles, 1C/1C>2000times; 80% DOD Cycles, 1C/C>5000 times.

Q2: Can the battery be connect in parallel?
A: Yes, it supports in parallel.

Q3: Can the Lithium Battery work with my hybrid inverter?
A: Yes, the Lead Acid Battery Replaced By Lithium Battery suitable for all off grid and hybrid inverter.

Q4: What’s the warranty of Lead Acid Battery Replaced By Lithium Battery?
A: 5 -10 years, we support extended warranty services.

Q5: What is the battery output power?
A: 2.56 KW.

Q6: Does the Lead Acid Battery Replaced By Lithium Battery including inverter?
A: No, battery only, so it is more flexible to work with different brand of inverter preferred by customer.

Q7: Does the Lead Acid Battery Replaced By Lithium Battery with communication function?
A: NO. But it has bluebooth (Bluetooth with Mobile APP), it is optional.

Q8: What is the Waterproof Rate?
A: It is IP65.
