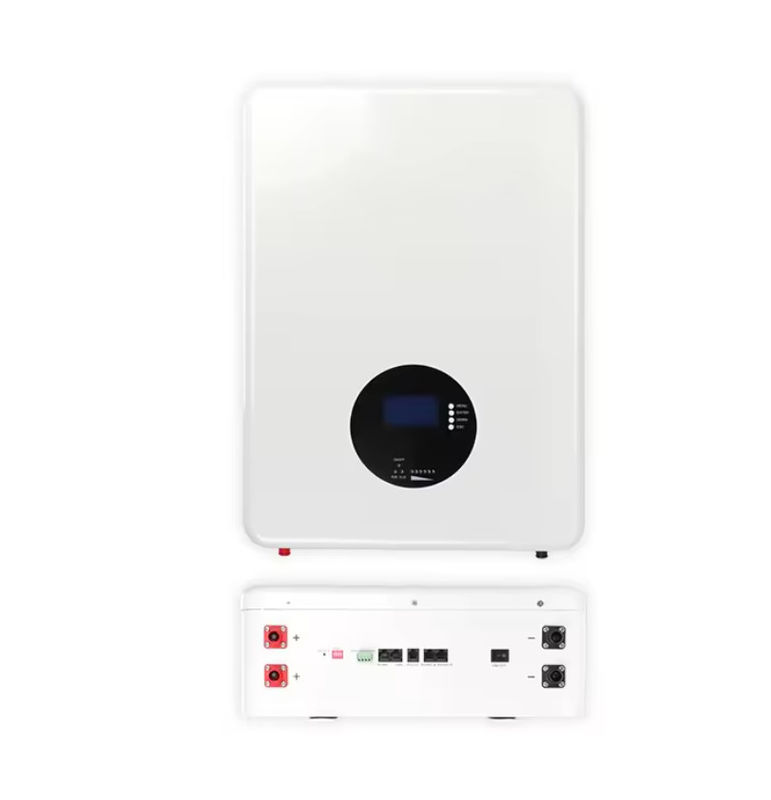

Wifi Smart Connection Home Solar Generate Energy Storage System
  • Wifi Smart Connection Home Solar Generate Energy Storage System
  • Wifi Smart Connection Home Solar Generate Energy Storage System
  • Wifi Smart Connection Home Solar Generate Energy Storage System
Wifi Smart Connection Home Solar Generate Energy Storage System

Wifi Smart Connection Home Solar Generate Energy Storage System

Place of Origin china
Product Details
Place Of Origin:
Guangdong, China
Power:
5kwh 10kwh
AC Output:
220/230/240v
Warranty:
5 Years
Output Frequency:
50Hz/60Hz
Battery Type:
Lifepo4/lithium Battery
Highlight:

Smart Connection Energy Storage System

,

Home Energy Storage System

,

Wifi Energy Storage System

Payment & Shipping Terms
Minimum Order Quantity
negotiated
Price
negotiated
Delivery Time
negotiated
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

Wifi Smart Connection Home Solar Generate Energy Storage System

Product parameters

Battery Pack specifications for single module
No
Item
General Parameter
Remark
1
Combination method
16S2P

2
Rated Capacity
Typical
100Ah
Standard discharge after Standard charge(package)


Minimum
99Ah

3
Factory Voltage
48V-49.5V
Mean Operation Voltage
4
Voltage at end of
Discharge
<=43.2V
Discharge Cut-off Voltage
5
Charging Voltage
57V

6
Internal Impedance
≤100mΩ
Under 20±5℃ Environment Temperature , the Usage Frequency of Fully Charge( 1KHz) , Use AC Internal Impedance test machine
7
Max Charging Current(Icm)
100A
Ampere-meter ,Maximum allowable charging current of the battery pack
8
Limited Charging Voltage(Ucl)
57.6V
Volta-meter (Serial*3.6V) ,Battery pack safe charging voltage
9
Max Discharging current
100A
Maximum discharge current allowed by the battery pack
10
Discharge Cut-off voltage(Udo)
43.2V
Voltage of the battery when the discharge is stopped
11
Operation Temperature Range
Charge:0~55℃



Discharge: -20~60℃

12
Storage Temperature Range
-20℃~25℃
Recommend(25±3℃)；≤90%RH storage moisture range.
13
Single module Size/weight
680*485*180 (220)mm /50Kg
1PCS,About 50kg for a single module
2~5K ON-GRID INVERTER WITH ENERGY STORAGE
Max. PV Array Power
3000W
4000W
6000W
Rated Output Power
2000VA/2000W
3000VA/3000W
5000VA/5000W
Maximum PV Array Open Circuit Voltage
450 VDC
PV input voltage range
120 VDC ~ 450 VDC
MPPT Range @ Operating Voltage
120 VDC ~ 430 VDC
Maximum PV input current
10A
18A
27A
Number of MPP Tracker
1
GRID-TIE OPERATION
GRID OUTPUT (AC)
Nominal Output Voltage
220/230/240 VAC
Output Voltage Range
184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)
Nominal Output Current
8.7A
13A
21.7A
Power Factor range
0.9 lag ~ 0.9 lead, default 0.99
EFFICIENCY



Maximum Conversion Efficiency (DC/AC)
0.96
OFF-GRID/HYBRID OPERATION
GRID INPUT
Acceptable Input Voltage Range
90 - 280 VAC or 170 - 280 VAC
Frequency Range
50 Hz/60 Hz (Auto sensing)
Maximum AC Input Current
20A
30A
40A
BATTERY MODE OUTPUT (AC)
Nominal Output Voltage
220/230/240 VAC
Output Waveform
Pure sine wave
Efficiency (DC to AC)
0.92
0.92
0.93
Dimension, D X W X H (mm)
142 x 297 x 455
Net Weight (kgs)
10
11
12

Wifi Smart Connection Home Solar Generate Energy Storage System 0

FAQ

Q: Can I buy sample from you?
A: Yes, sample order testing is welcome.

Q: Can I do my own brand?
A: Yes, we'd love to accept to print your logo on our products and help you build your brands.

Q: Can I be your distributor/agent?
A: Yes, we recruit global partners for win-win business cooperation.

Q: What OEM/ODM services can you provide?
A: Structure, Hardware, Software, Function, Logo printing, Colors, Package, etc.

Q: What is the lead time for sample/mass production?
A: Sample: 5-7 days
Mass Production: 35-45 days. (Depends on order quantity)
