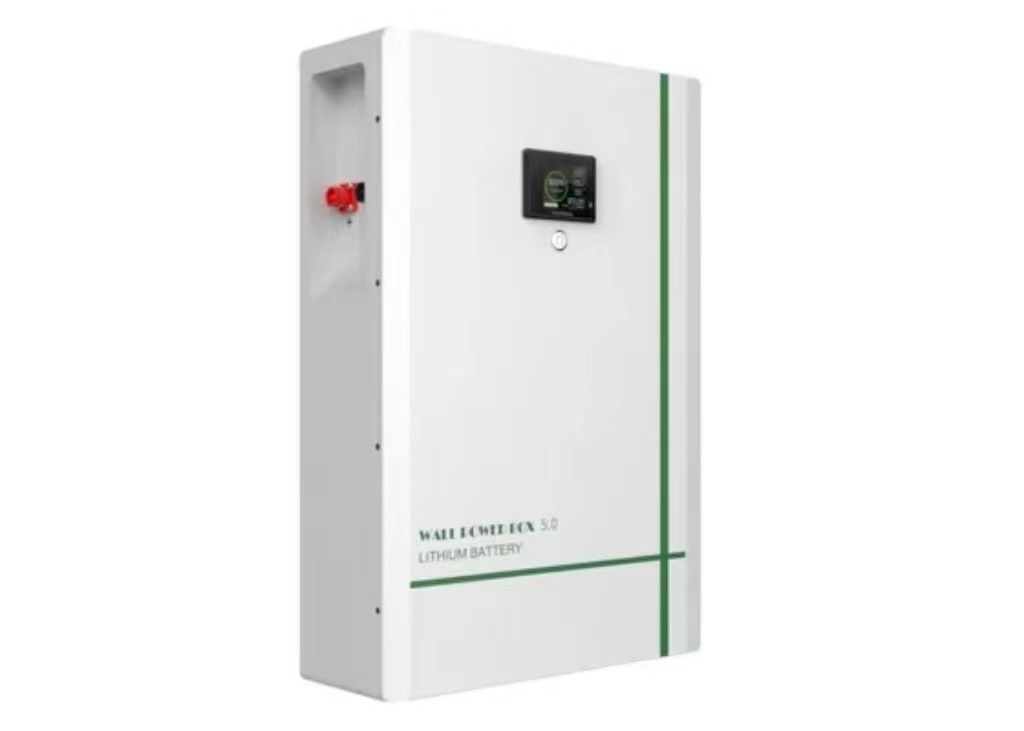

Lightweight Energy Storage Lithium Battery Pack 48 Volt Lifepo4 Solar Home System
|
|
Model
|
LFP50160119/3.2V/300Ah
|
|
Capacity
|
300Ah
|
|
Rated Voltage
|
3.2V
|
|
Internal Resistance
|
≤0.5mΩ
|
|
Combination Standard
|
A. Resistance()=0.3mΩ
B. Voltage=5mV
|
|
Combination Method
|
16S1P
|
|
Electrical
Characteristics
|
Nominal Voltage
|
51.2V
|
|
Nominal Capacity
|
300Ah
|
|
Energy
|
15kWh
|
|
Internal Resistance
|
≤20m Ω
|
|
Cycle Life
|
>8000 cycles
|
|
Months Self Discharge
|
<3%
|
|
Efficiency of Discharge
|
96~99% @150A
|
|
Standard
Charge
|
Charge Voltage
|
58.4V±0.2V
|
|
Charge Mode
|
0.5C to 58.4V,then 58.4V,
chargecurrent to 0.05C(CC/CV)
|
|
Charge Current
|
0.5C
|
|
Max. Charge Current
|
200A
|
|
Standard
Discharge
|
Continuous Current
|
200A
|
|
Max. Pulse Current
|
200A (MAX12S)
|
|
Discharge Cut-off Voltage
|
40V
|
|
Environmental
|
Charge Temperature
|
0 ℃ to 55 ℃ @60±25%
Relative Humidity
|
|
Discharge Temperature
|
-20 ℃ to 55 ℃ @60±25% Relative Humidity
|
|
Storage Temperature
|
0 ℃ to 40 ℃ @60±25% Relative Humidity
|
|
Water Dust Resistance
|
IP20
|
|
Mechanical
|
Plastic Case
|
metal
|
|
Dimensions( mm)
|
420*600*180mm
|
|
Weight(kg)
|
15 0 K G
|
Lithium Battery Energy Storage System - Advantages
1. High energy density, space-saving
2. Fast charging & discharging speed
3. Long cycle life, low replacement cost
4. High charge-discharge efficiency
5. Safe & stable operation performance
6. Low self-discharge rate, energy-saving
7. Environmentally friendly, zero pollution
8. Intelligent BMS, smart monitoring
Lithium Battery Energy Storage System - Application Scenarios
1. Residential household power backup
2. Commercial building energy management
3. Industrial peak regulation & energy saving
4. Grid frequency regulation & stabilization
5. Off-grid remote area power supply
6. Solar PV system energy storage
7. Wind power complementary storage
8. Emergency rescue power support
9. Data center uninterrupted power
FAQ
Q1: What is the Moa for the products?
Depending on the order details.Large quantity can get the discount.
Q2: Can samples be sent to customers?
Yes, samples are supported (some items for free sample)
Q3: Do you take orders for private labels?
Yes, we do. We can make your own private paper card/logo as your requirement.
Q4: Do you supply custom packaging and accept OEM?
Yes, we can make custom packaging for you. You just need to send the logo and your request, we will make the design.
Q5: How long does the producing and delivery time?
Around time depends on the amount of your order, info our service team to get more details please.
Q6: What are the shipping ways you can offer?
By air/sea according to customers'requirements.
Q7: Do your products come with warranty?
Yes, we promise 5-10 years warranty according different model.
Q8: Are you a factory? Shall we have a tour of your factory before we cooperate?
Yes, we are a leading supplier and manufacturer in Guangdong China,we have 10+ years industrial experience in telecommunications & energy products.
