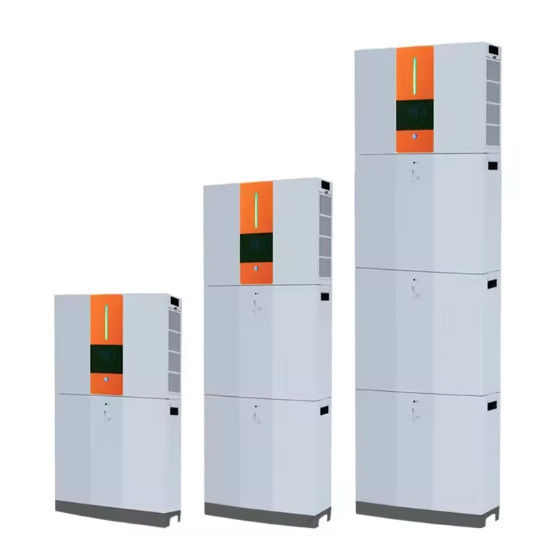

5KWh 10kWh Solar Lithium Battery Home Energy Storage System Use Household
  • 5KWh 10kWh Solar Lithium Battery Home Energy Storage System Use Household
  • 5KWh 10kWh Solar Lithium Battery Home Energy Storage System Use Household
  • 5KWh 10kWh Solar Lithium Battery Home Energy Storage System Use Household

5KWh 10kWh Solar Lithium Battery Home Energy Storage System Use Household

Place of Origin china
Product Details
Place Of Origin:
Guangdong, China
Protection Class:
IP54
Nominal Voltage:
51.2V
Capacity:
5kWh - 10kWh
Certification:
CE/RoHS/UN38.3/MSDS
Communication Port:
CAN, RS485
Payment & Shipping Terms
Delivery Time
negotiated
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

5KWh 10kWh Solar Lithium Battery Home Energy Storage System Use Household ​

Product parameters



Model

PMD-wall-48100

PMD-wall-48200

Nominal Capacity

100Ah

200Ah

Nominal Energy

5120Wh

10240Wh

Nominal Voltage

51.2V

51.2V

Charging Voltage

58.4V

58.4V

Discharge Voltage

40V

40V

Cell

3.2V100Ah

3.2V100Ah

Cell Series&Parallels

16S1P

16S2P

Charge Current

100A

200A

Discharging Current

100A

200A

Max. Discharge Current 10S

200A

400A

Max Discharge Power

5000W

10KW

Operating Temperature

Charge:0~50℃;Discharge:-20~60℃

Charge:0~50℃;Discharge:-20~60℃

6Cycle Life

6000 Time

6000 Time

IP Class

IP55

IP55

Dimensions

L675*W400*H165 mm

L715*W475*H55 mm

Weight

50kg

90kg

Certificate

CE/FCC/UN38.3/MSDS

CE/FCC/UN38.3/MSDS




Our Advantages
1, LiFePo4 Battery
    battery uses 16 3.2V 100Ah A-grade cells connected in series. The maximum energy is 5120Wh, the maximum discharge current

   is 100A, that is, the maximum output power is 5120W, and the recommended charging current is 50A.
2,Built-in BMS
   This 51.2V 100ah LiFePO4 battery has built-in 100A BMS to protect it from overcharging, over-discharging,
    over-current, overheating and short circuits with excellent self-discharge rate, ensuring the LiFePO4 battery's safety level and

    optimize the 51.2V battery performance.
3,10+ Years Lifespan
    Lithium batteries use Grade A battery cells, 6000+ cycle times, which is more than 10 times comparing with Lead-acid

    batteries(usually only last for 300-500 cycles).
4,Advanced Technology】
   51.2V 100Ah lithium battery adopts the most advanced lithium battery manufacturing technology,
   more stable performance and greater power. Our battery pack connections are all welded by machine, which avoids the

   problem of poor contact caused by manual work.
5,More Advantages
  The 48V 100Ah batteries support recharging by solar power, wall outlet and generator. It can maximize the use of solar

  energy to save your electricity costs, get power immediately during a power outage and reduce carbon footprint.

5KWh 10kWh Solar Lithium Battery Home Energy Storage System Use Household 0



Company Profile

Guangzhou Pei Mengdan new energy Technology Co., LTD is an advanced energy storage solution for storing and
releasing large-scale electrical energy. By stacking multiple battery modules and control systems, the device is able
to efficiently store electricity from the grid, renewable energy or other energy systems and provide high-capacity power
output when needed.
5KWh 10kWh Solar Lithium Battery Home Energy Storage System Use Household 1

Application



5KWh 10kWh Solar Lithium Battery Home Energy Storage System Use Household 2

FAQ

Q1. What are the advantages of your company?

A: Strong R & D team, independent R & D and production of main parts, to control product quality from the source.



Q2: How do you ship the goods since they are high capacity battery ?

A: We have long-term cooperated forwarders who are professional at battery shipment.



Q3: What is the delivery time of your power station?

A: Generally within 7-15 days, we well arrange it for you as soon as possible.



Q4: Do you have MOQ ?

A:  No limited. More quantity has better price, we will check the best price for you.



Q5. how can we guarantee quality?

A: Always a pre-production sample before mass production;

     Always final Inspection before shipment;



Q6.  why should you buy from us not from other suppliers?

A: We specialize in this field for many years with advanced equipment, scientific management techniques,

and excellent quality control which earn us customers all over the world.
