Customized Energy Storage Battery Lithium Ion LiFePO4 Home Energy Storage System
  • Customized Energy Storage Battery Lithium Ion LiFePO4 Home Energy Storage System
  • Customized Energy Storage Battery Lithium Ion LiFePO4 Home Energy Storage System
  • Customized Energy Storage Battery Lithium Ion LiFePO4 Home Energy Storage System
Customized Energy Storage Battery Lithium Ion LiFePO4 Home Energy Storage System

Customized Energy Storage Battery Lithium Ion LiFePO4 Home Energy Storage System

Place of Origin china
Product Details
Battery Type:
LiFePO4
Output Power Range:
3.5 KWh
Cycle Life:
6000 Times
Warranty:
15 Years
Weight:
32kg
Nominal Voltage:
51.2V
Payment & Shipping Terms
Minimum Order Quantity
negotiated
Price
negotiated
Delivery Time
negotiated
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Product Description

Customized Energy Storage Battery Lithium Ion LiFePO4 Home Energy Storage System​

Product Paramenters

Basic Parameter
Rated Voltage(V)
51.2
Rated Capacity(Ah)
70
Rated Energy(Wh)
3584
Operation Parameter
Voltage Range(V)
44.8-56
Charge Voltage Range(V)
55.2-56
Cut-off Voltage(V)
44.8
Recommend Charge Current(A)
30
Max Charge Current(A)
60
Max Discharge Current(A)
60
Physical Parameter
Dimension:L*W*H(mm)
370*420*120
Weight(kg)
32
Communication Port
RS485,CAN
Display
LED+LCD
Terminal
Plug-in
Environment Parameter
Humidity(%)
5-95% RH
Charge Temperature Range(℃)
0-45
Discharge Temperature Range(℃)
-20-60
Storage Temperature Range(℃)
-20-45
Service Life

Cycle Life
＞6000 (0.5C@ 25℃,80% DOD)
Design Life (Year)
15

WHAT IS MORE
1,Rated power 4KW to 12KW, with DSP control.
2,Pure sine wave AC output.
3,Built-in MPPT solar charge controller.
4,Low frequency with transformer/High frequency
5,Configurable AC/ solar input priority via LCD setting Compatible to mains voltage or generator power.
6,WIFI/GPRS remote monitoring.
7,RS485/CAN communication for BMS
8,DPS digital control technology, double transform online design,using input PFC technology, input efficiency up to 99%, high
efficiency inverter topology, input efficiency is higher.
9,The battery balancing function optimizes battery performance and prolongs battery power.
10,Built in 80A-120A MPPT solar charger, with higher energy storage efficiency.
11,Inverters Max imum parallel 9 sets -Combination and intelligent load.
12,Commercial power/photovoltaic/battery/multi-mode optimal input.
13,Energy storage battery has a single layer of 10KW, which can be stacked freely.
14,Energy storage battery and inverter are integrated, without matching problems.

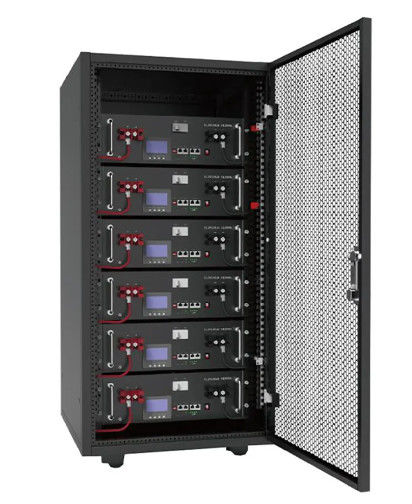

Product display
Customized Energy Storage Battery Lithium Ion LiFePO4 Home Energy Storage System 0


Certifications

Customized Energy Storage Battery Lithium Ion LiFePO4 Home Energy Storage System 1
UL, CE, UN38.3, MSDS, IEC and other international certifications

FAQ

Q: Do you have MOQ ?

Re: No limited. More quantity has better price, we will check the best price for you.



Q: What's the delivery time?

Re: Generally within 7-15 days, we well arrange it for you as soon as possible.



Q: Which product is hot sale in your company?

Re: LiFePO4 battery 230ah, 280ah, 302ah, 50ah; 12V,24V, 48V LiFePO4 battery pack and so on.



Q: Does your product come with a product warranty?

Re: Yes. Our battery and charger all cover with warranty For LIFEPO4 battery: 3-5 years warranty. For charger: 12 months product warranty.



Q: How do I know whether you've shipped my order or not?

Re: Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing status,

      photo of the orderand let you know the detail shipment information.
