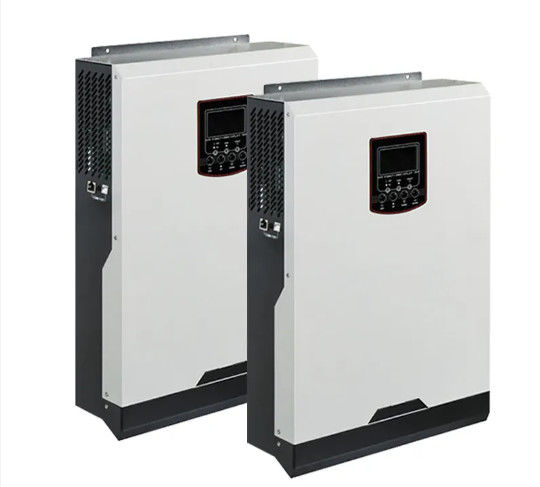

Single Phase Solar Hybrid Inverter MPPT Controller AC Inverter For House
  • Single Phase Solar Hybrid Inverter MPPT Controller AC Inverter For House
  • Single Phase Solar Hybrid Inverter MPPT Controller AC Inverter For House
  • Single Phase Solar Hybrid Inverter MPPT Controller AC Inverter For House
Single Phase Solar Hybrid Inverter MPPT Controller AC Inverter For House

Single Phase Solar Hybrid Inverter MPPT Controller AC Inverter For House

Place of Origin china
Product Details
Input Voltage:
DC24V/48V
Output Voltage:
230VAC
Output Frequency:
50Hz/60Hz
Warranty:
1 Years
Weight:
39.5KG
Nominal Voltage:
220V
Payment & Shipping Terms
Minimum Order Quantity
negotiated
Price
negotiated
Delivery Time
negotiated
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
Product Description

Single Phase Solar Hybrid Inverter MPPT Controller AC Inverter For House

Application Scenarios
Our Advantages
Single Phase Solar Hybrid Inverter MPPT Controller AC Inverter For House 5
Single Phase Solar Hybrid Inverter MPPT Controller AC Inverter For House 6
Product Details
Single Phase Solar Hybrid Inverter MPPT Controller AC Inverter For House 7
Product Paramenters
Model
HY3522VMII
HY5532VMII

RATED POWER
3500VA/3500W
5500VA/5000W
INPUT
Voltage
230VAC
Selectable Voltage Range
170~280VAC (For Personal Computers);
90~280VAC (For Home Appliances)
Frequency Range
50Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt.Mode)
230VAC± 5%
Surge Power
7000VA
11000VA
Efficiency (Peak)
90%~93%
Transfer Time
10 ms (For Personal Computers);
20ms (For Home Appliances)
Waveform


BATTERY
Battery Voltage
24V DC
48V DC
Floating Charge Voltage
27V DC
54V DC
Overcharge Protection
33V DC
63V DC
SOLAR CHARGER & AC CHARGER
Max.PV Array Open Circuit Voltage
500V DC
500V DC
Max.PV Array Power
120~450VDC
120~450VDC
MPP Range@operating Voltage
4000W
5000W
Max.Solar Charge Current
100A
100A
Max.AC Charge Current
60A
60A
Max.Charge Current
100A
100A
PHYSICAL
Dimension, D x W x H(mm)
115 x 300 x400
Net Weight (kgs)
9
10
Communication Interface
USB / RS232 /RS485 /Bluetooth /Dry-contact
ENVIRONMENT
Humidity
5% to 95% Relative Humidity (Non-condensing)
Operating Temperature
-10 °C to 50 °C
Storage Temperature
-15 °C to 60 °C
