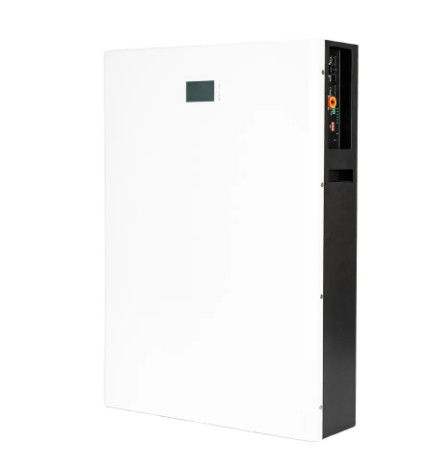

Wall Mounted 48v 200ah 10kwh Battery Lifepo4
  • Wall Mounted 48v 200ah 10kwh Battery Lifepo4
Wall Mounted 48v 200ah 10kwh Battery Lifepo4

Wall Mounted 48v 200ah 10kwh Battery Lifepo4

Place of Origin china
Product Details
Weight:
50-200kg
Cycle Life:
6000 Times
Storage Temperature:
-20~+45℃
Protection Level:
IP54
Nominal Voltage:
51.2V
Nominal Capacity:
100Ah/150Ah/200Ah
Payment & Shipping Terms
Minimum Order Quantity
negotiated
Price
negotiated
Delivery Time
negotiated
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description
Specification

Key features

1. Withstand thermal shock and puncture without fire or explosion

2. Compatible with global mainstream brands inverter

3. Real-time monitoring on LCD screen
4. Communication compatibility: CAN, RS485, RS232
5. Built-in 1A active balancer
6. Built-in 120A circuit breaker, dual protection
7.Modular design, easy to install and maintain, support parallel connection
8. Professional BMS, multiple protection
9. 6000 cycles, long life
10. Can be connected to APP remote control
Model
HX48100W
HX48150W
HX48200W
Nominal Voltage
51.2V
51.2V
51.2V
Nominal Capacity
100Ah
150Ah
200Ah
Rated Energy
5120Wh
7680Wh
10240Wh
Maximum Charge Voltage
57.6V
57.6V
57.6V
Maximum Charge Current
100A
150A
200A
Maximum Continuous Discharge Current
100A
150A
200A
Maximum Peak Discharge Current (5 seconds)
200A
300A
400A
Discharge Cut-off Voltage
43.2V
43.2V
43.2V
Charge Temperature
-5~+60℃
Discharge Temperature
-10~+65℃
Storage Temperature
-20~+45℃
Self Discharge (Stored at 50%SOC)
≤3%/month
Cycle Life (25℃, 0.5C, 100% DOD)
>6000
Terminals
M8 Nut
Protection Level
IP54
Dimensions
485*684*158mm
485*684*180mm
490*680*217mm
Weight
47.5kg
69kg
86kg
Communication Protocol
CAN/RS485/RS232
Wall Mounted 48v 200ah 10kwh Battery Lifepo4 0
Wall Mounted 48v 200ah 10kwh Battery Lifepo4 1
Wall Mounted 48v 200ah 10kwh Battery Lifepo4 2
Wall Mounted 48v 200ah 10kwh Battery Lifepo4 3

Wall Mounted 48v 200ah 10kwh Battery Lifepo4 4
Wall Mounted 48v 200ah 10kwh Battery Lifepo4 5
Wall Mounted 48v 200ah 10kwh Battery Lifepo4 6
Wall Mounted 48v 200ah 10kwh Battery Lifepo4 7
Wall Mounted 48v 200ah 10kwh Battery Lifepo4 8
Company Profile
We passed ISO9001:2000 in 2008, also we have gained certification KC, UL, CE, FCC, CB, ROHS, REACH, PSE, UN38.3 and so on. With the effort of all Hysincere staffs, our products have been sold to over 30 countries including Europe, North America, Southeast Asia, Singapore, Taiwan, South Korea and other countries and regions, we have been widely accepted and got very positive feedbacks Standing by our tenet: "credit, enterprise, solidarity, mutualism", sincerely hope to cooperate with you in order to achieve collective progress.
Our Advantages
Wall Mounted 48v 200ah 10kwh Battery Lifepo4 9
Wall Mounted 48v 200ah 10kwh Battery Lifepo4 10
FAQ
Wall Mounted 48v 200ah 10kwh Battery Lifepo4 11
