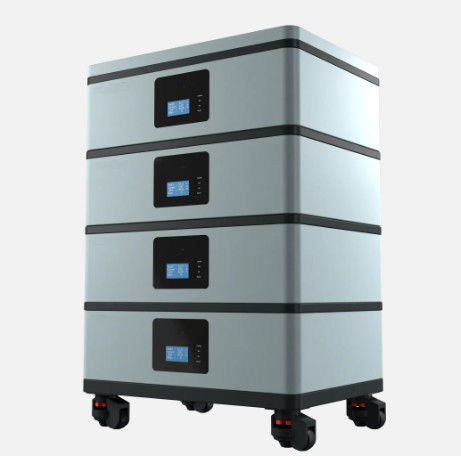

5KWh Lifepo4 Stackablewith Base Wheels Lithium Battery Energy Storage Systems
  • 5KWh Lifepo4 Stackablewith Base Wheels Lithium Battery Energy Storage Systems
5KWh Lifepo4 Stackablewith Base Wheels Lithium Battery Energy Storage Systems

5KWh Lifepo4 Stackablewith Base Wheels Lithium Battery Energy Storage Systems

Place of Origin china
Product Details
Weight:
48Kg
Nominal Voltage:
51.2V
Current:
100Ah
Warranty:
10 Years
Working Temperature:
0~40°C(Charge)/-20~40°C(Discharge)
IP Level:
IP 20
Payment & Shipping Terms
Minimum Order Quantity
negotiated
Price
negotiated
Delivery Time
negotiated
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

5KWh Lifepo4 Stackablewith Base Wheels Lithium Battery Energy Storage Systems

Basic Parameters
51.2V 100Ah
Nominal Voltage (V)
51.2V
Nominal Capacity (Ah)
100Ah
Nominal Power (Wh)
5.12KWh
Dimension (mm)
578.5×458.5×172.4mm
Weight (Kg)
48Kg±3kg
Working voltage range
42V~58.4V
Max. Charge/Discharge Current (A)
100A
Communication Interface
CANBUS,RS485
Configuration
2P16S
Working Temperature
0～40℃(Charge) /-20～40℃(Discharge)
Cell chemistry
Lithium iron phosphate (LiFePO4)
Cycle life
6000 cycles @25℃ 50A charging/discharging current 80% DOD
IP level
IP 20

5KWh Lifepo4 Stackablewith Base Wheels Lithium Battery Energy Storage Systems 0

5KWh Lifepo4 Stackablewith Base Wheels Lithium Battery Energy Storage Systems 1
5KWh Lifepo4 Stackablewith Base Wheels Lithium Battery Energy Storage Systems 2
5KWh Lifepo4 Stackablewith Base Wheels Lithium Battery Energy Storage Systems 3



Q:What certification do you have for your battery packs?
A:Now we have CE,MSDS,ROHS and UN38.3 certification. Next, we plan to make German VDE certification, North American UL certification and Australian CEC certification.
Q:What brand of inverter can your battery pack connect to? A:This is the inverter brand we have actually tested,they are work well together,and our BMS can work without communicating with the inverter.
1.Goodwe
2.Growatt
3.Victron
4.Voltronic
5.LUXPOWET
6.Sofar
7.DEYE
8.Sermatec
9.RENAC
10.TBBPOWER
11.SOLIS
12.SMA
13.FoxESS
Q:Your battery life is only 4800 cycles. Is that A Grade A battery? I've seen others have over 6000 cycles? A:Yes,Our battery is Grade A cell,this is because the standards are different. Our 4800 cycles are measured under the condition of 0.5C charging ratio of 100%DOD,and when we use 0.25C charging ratio, our cycles can reach more than 6000+.
