Photovoltaic Portable Energy Storage Systems 48V 100Ah 200Ah 5kWh 10kWh
  • Photovoltaic Portable Energy Storage Systems 48V 100Ah 200Ah 5kWh 10kWh

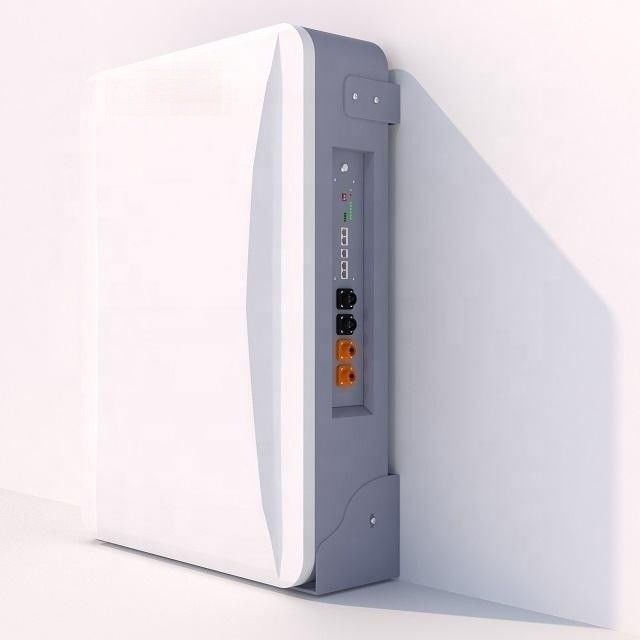

Photovoltaic Portable Energy Storage Systems 48V 100Ah 200Ah 5kWh 10kWh

Photovoltaic Portable Energy Storage Systems 48V 100Ah 200Ah 5kWh 10kWh

Place of Origin china
Product Details
Battery Type:
LiFePO4
Voltage:
51.2V
Capacity:
5kWh/10kWh
Cycle Life:
6000 Times
Warranty:
10YEARS
Discharge Rate:
0.2C
Highlight:

Energy Storage Systems 48V 100Ah

,

Portable Energy Storage Systems 5kWh

Payment & Shipping Terms
Minimum Order Quantity
negotiated
Price
negotiated
Delivery Time
negotiated
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

48V100Ah 200Ah Power Wall Photovoltaic Energy Portable Solar Storage 5kWh 10kWh LiFePO4 Lithium Battery

Product details

Photovoltaic Portable Energy Storage Systems 48V 100Ah 200Ah 5kWh 10kWh 0Photovoltaic Portable Energy Storage Systems 48V 100Ah 200Ah 5kWh 10kWh 1

Total Energy*
5kWh
10kWh
Usable Energy(DC)*
4.6kWh
9.2kWh
Nominal Dis-/Charge Power
3kW
4.6kW
Peak Power(Only Discharge)
7kWh for 3 seconds
10kWh for 3 seconds
Constant Current(Only Discharge)
100A
100A
Voltage
48~56Vd.c
48~56Vd.c
Nominal Voltage
51.2Vd.c
51.2Vd.c
Nominal Current
60A
100A
Max. Charge Voltage
59.2V±0.5V d.c
59.2V±0.5V d.c
Weight
65kg
125kg
Dimension(mm)
490(550)*650(700)*196(216)mm
585(645)*940(995)*205(225)mm
Safety
CE UN38.3
CE UN38.3
Max.recommended DOD
90%
Operating Condition
Indoor or outdoor
Operating Charge
From 0~45℃
Temperature Discharge
From -10~50℃
Humidity
4~100% (No condensed water)
Pollution Degree
3
Over Voltage Category
II
Cooling Type
Natural cooling
Case Material
Metal + Plastic
IP Rating
IP 65
Protective Class
I
Max. Number of Parallel or Series
16
Warranty
10 years
Life Span
>15 years
Communication
CAN
Protection Mode
Triple hardware protection
Battery Protection
Over-current/Over-voltage/Short circuit/ Under-voltage
Hazardous Material Classification
9



Photovoltaic Portable Energy Storage Systems 48V 100Ah 200Ah 5kWh 10kWh 2

Photovoltaic Portable Energy Storage Systems 48V 100Ah 200Ah 5kWh 10kWh 3
